ETHERCHANNEL

How to configure Layer 3 Etherchannel?

Ved khanna

,
IT Manager

Total 1 Answer
3928

Can You answer this question?

Answer

Mr. Piyush Kataria

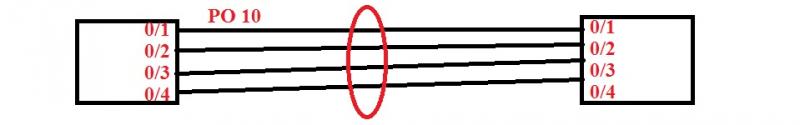

ASSUME WE HAVE TWO SWITCHES SW1 and SW2.AS WE WANT TO CONFIGURE ETHERCHANNEL
        BETWEEN SW1 and SW2 , FOLLOW THIS SEQUENCE OF COMMANDS:-
INT RANGE FA0/1-4                                                                    INT RANGE FA0/1-4                                                                   NO SWITCHPORT                                                                       NO SWITCHPORT
CHANNEL-GROUP 10 MODE ACTIVE(LACP)                                 CHANNEL-GROUP 10 MODE PASSIVE(LACP)
        EXIT                                                                                              EXIT

        INT PORT-CHANNEL 10                                                              INT PORT-CHANNEL 10
        IP ADDRESS 192.168.1.1 255.255.255.0                                         IP ADDRESS 192.168.1.2 255.255.255.0
        EXIT                                                                                                   EXIT
